FemtoFiber ultra

FemtoFiber ultraReliable, compact, turn-key and fully-integratedTurn-key, fully-integrated, and optimized to specific applications – the FemtoFiber ultra series from TOPTICA combines more than 15 years of experience in developing OEM-class fiber-la
产品咨询

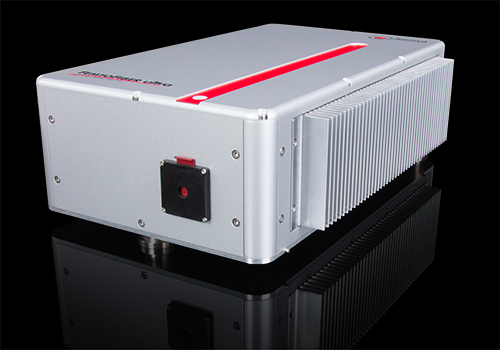

FemtoFiber ultra

Reliable, compact, turn-key and fully-integrated

Turn-key, fully-integrated, and optimized to specific applications – the FemtoFiber ultra series from TOPTICA combines more than 15 years of experience in developing OEM-class fiber-lasers with a deep understanding of the specific needs of the biophotonic and material-modification & inspection market. With this experience we have tailored our FemtoFiber ultra series to provide our customers with a first-class light engine for high-end applications such as 2P-Microscopy, 2P-Polymerization, and Semiconductor Inspection.
The reliable and compact laser design of the FemtoFiber ultra series provides femtosecond pulses with high average power, excellent temporal & spatial beam quality, dispersion compensation (GDD), and optional output power control (AOM) to ensure exceptional results at a low-cost of ownership.

紧 | 坚固 | 高端 | 便捷

FemtoFiber
ultra 780

780nm | >0.5W | <150fs | 80MHz
Optional: Short pulse <100fs

Core-Applications:
2P-Polymerization,
2P-Microscopy,
Semicon inspection

FemtoFiber

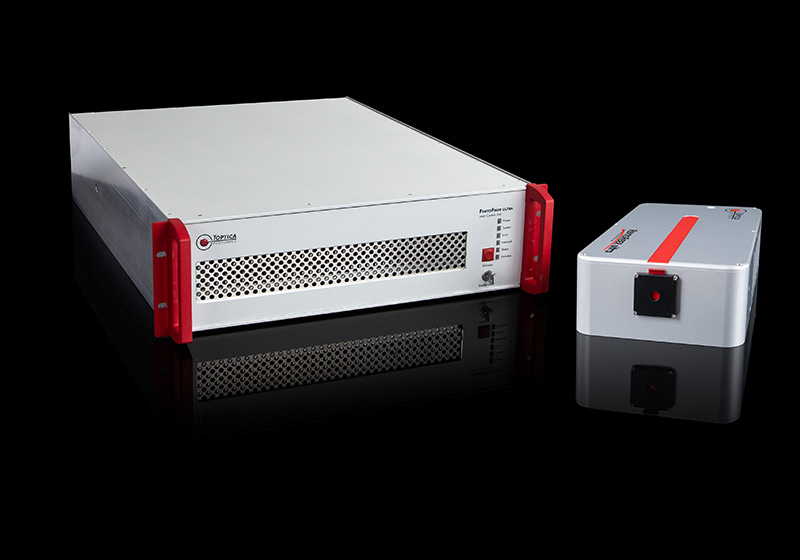

ultra 920

920nm | >1.5W | <100fs | 80MHz
Integrated GDD & AOM

Core-Applications:
2P-Microscopy,
SHG-Microscopy

FemtoFiber
ultra 1050

1050nm | >5W | <120fs | 80MHz
Integrated GDD

Core-Applications:
2P-Microscopy,
SHG-Microscopy

FemtoFiber
ultra 1550

1550nm | >2W | <200fs | 80MHz


Core-Applications:
Quantum Communication,
THz-Generation

Core Applications of the FemtoFiber ultra series

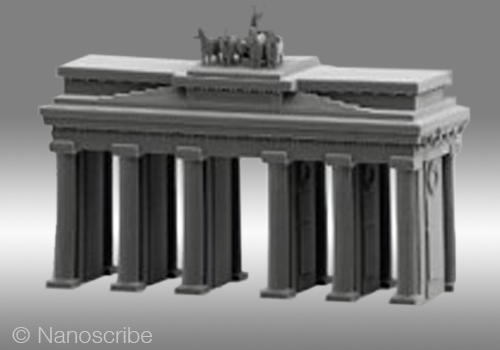

2P-Polymerization

2P-Polymerization is a direct laser writing technique that allows for creating complex three-dimensional structures down to feature sizes of ~100nm.

Featured Toptica Lasers:
FemtoFiber ultra 780

2P-Microscopy

2P-Fluorescence Microscopy is a key technology in biological imaging to enable 3D, noninvasive imaging of tissue on the submicron scale

Featured Toptica Lasers:
FemtoFiber ultra 780
FemtoFiber ultra 920
FemtoFiber ultra 1050

Semicon inspection

SHG-imaging and ultrafast pump-probe microscopy are routinely used in semiconductor inspection to analyse layer thickness, defects, or carrier densities.

Featured Toptica Lasers:
FemtoFiber ultra 780
FemtoFiber ultra 1050

Quantum Communication

Quantum communication is using entanglement and measurement process on a quantum state to achieve secure communication between Alice and Bob.

Featured Toptica Lasers:
FemtoFiber ultra 780
FemtoFiber ultra 1550
