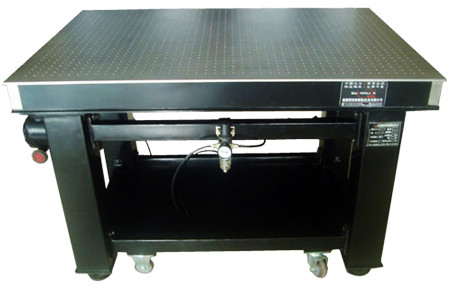

光学平台
|
规格型号 |
长-宽-高 |
备 注 |
|
|
参 数 说 明 |
ZH105PTB600x600x80 |
600X600X800 |
4支撑 M6螺孔孔距25mm |
|
ZH105PTB750x750x80 |
750X750X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH105PTB900x600x80 |
900X600X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH105PTB1200x800x100 |
1200X800X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH105PTB1500x1000x100 |
1500X1000X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH105PTB1800x1200x150 |
1800X1200X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH105PTB2000x1000x150 |
2000X1000X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH105PTB2000x1200x150 |
2000X1200X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH105PTB2000x1500x150 |
2000X1500X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH105PTB2400x1200x200 |
2400X1200X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH105PTB2400x1500x200 |
2400X1500X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH105PTB3000x1000x250 |
3000X1000X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH105PTB3000x1200x250 |
3000X1200X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH105PTB3000x1500x250 |
3000X1500X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH105PTB3500x1200x250 |
3500X1200X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH105PTB3500x1500x250 |
3500X1500-X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH105PTB4000x1500x250 |
4000X1500X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH105PTB4500x1500x300 |
4500X1500X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH105PTB5000x1500x300 |
5000X1500X800 |
8支撑 M6螺孔孔距50mm |
|
|
ZH105PTB6000x1500x300 |
6000X1500X800 |
8支撑 M6螺孔孔距50mm |
|
|
ZH105PTB8000x1500x300 |
8000X1500X800 |
8支撑 M6螺孔孔距50mm |
|
|
特点： |
|||
| ⊕自动平衡系统：采用空气伺服系统，自动调整水平。它的突出特点是把系统对微振的响应反馈到系统中，改变隔振特性，提高隔振效果，在超载偏重的实验条件下，瞬间达到初始的平衡状态 | |||
| ⊕隔振层利用固有频率低、阻振性能强的蜂窝结构材料，能最大限度控制振动的响应 | |||
| ⊕隔振支撑采用二层膜片气囊隔离，配合高阻尼小孔，隔振性能良好稳定，轻松调节，自动水平，自动充气，采用进口静音空压机气源，噪声低，适用于振动频率要求高的实验场所 | |||
| ⊕静音空气机气源，噪声低（小于65分贝） | |||
| ⊕平面度：< 0.05mm/m2 | |||
| ⊕表面粗糙度：< 0.8μm | |||
| ⊕固有频率：垂直1.2Hz～1.8Hz,水平1.2Hz～1.8Hz | |||
| ⊕振幅：< 1.2μm | |||
| ⊕重复定位精度：+0.05mm | |||
| ⊕空气压力：0.2-0.6（Mpa） | |||
| ⊕大型光学隔振平台，外框采用刚性强、变形小、焊接性能好的优质中碳钢板 | |||
| ⊕面板采用高导磁不锈钢板，精磨后具有实用、美观和耐磨等特点 | |||
