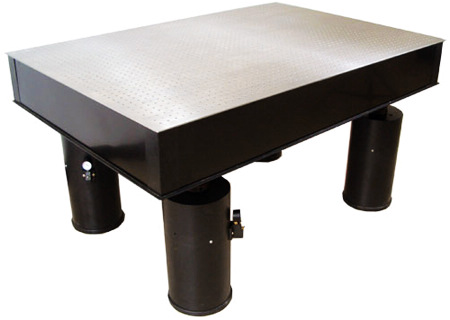

光学平台
|
规格型号 |
长-宽-高 |
备 注 |
|
|
参 数 说 明 |
ZH104PTB600x600x80 |
600X600X800 |
4支撑 M6螺孔孔距25mm |
|
ZH104PTB750x750x80 |
750X750X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH104PTB900x600x80 |
900X600X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH104PTB1200x800x100 |
1200X800X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH104PTB1500x1000x100 |
1500X1000X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH104PTB1800x1200x150 |
1800X1200X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH104PTB2000x1000x150 |
2000X1000X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH104PTB2000x1200x150 |
2000X1200X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH104PTB2000x1500x150 |
2000X1500X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH104PTB2400x1200x200 |
2400X1200X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH104PTB2400x1500x200 |
2400X1500X800 |
4支撑 M6螺孔孔距25mm |
|
|
ZH104PTB3000x1000x250 |
3000X1000X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH104PTB3000x1200x250 |
3000X1200X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH104PTB3000x1500x250 |
3000X1500X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH104PTB3500x1200x250 |
3500X1200X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH104PTB3500x1500x250 |
3500X1500X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH104PTB4000x1500x250 |
4000X1500X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH104PTB4500x1500x300 |
4500X1500X800 |
6支撑 M6螺孔孔距50mm |
|
|
ZH104PTB5000x1500x300 |
5000X1500X800 |
8支撑 M6螺孔孔距50mm |
|
|
ZH104PTB6000x1500x300 |
6000X1500X800 |
8支撑 M6螺孔孔距50mm |
|
|
ZH104PTB8000x1500x300 |
8000X1500X800 |
8支撑 M6螺孔孔距50mm |
|
| 特点： | |||
| *大型光学隔振平台，外框采用刚性强、变形小、焊接性能好的优质中碳钢板 | |||
| *隔振层利用固有频率低、阻振性能强的蜂窝结构材料，能最大限度控制振动的响应 | |||
| *静音空气机气源，噪声低（小于65分贝） | |||
| *调节支撑部分采用耐磨丝杆和平面推力球轴承，使用时轻松可靠 | |||
| *平面度：< 0.05mm/m2 | |||
| *表面粗糙度：< 0.8μm | |||
| *固有频率：垂直1.2Hz～2.0Hz,水平1.2Hz～2.0Hz | |||
| *振幅：< 1.2μm | |||
| *空气压力：0.2-0.6（Mpa） | |||
| *隔振支撑采用二层膜片囊，小孔空气阻尼高效配合，隔振性能最好，配有自动充气系统，结构紧凑，稳定可靠 | |||
| *面板采用高导磁不锈钢板，精磨后具有实用、美观和耐磨等特点 | |||
